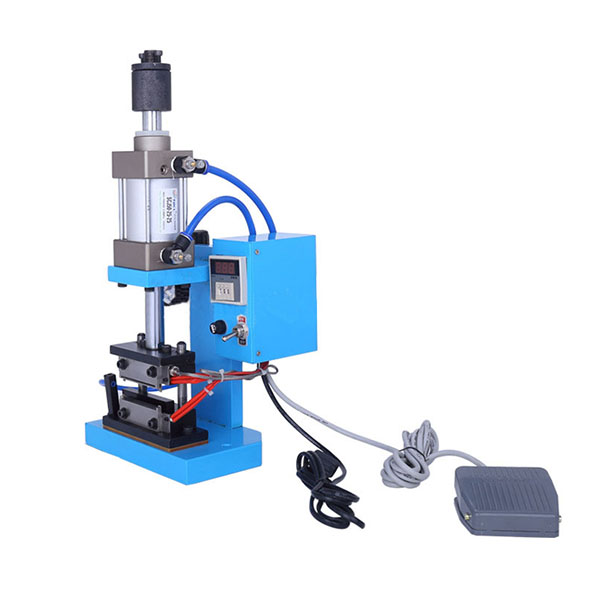

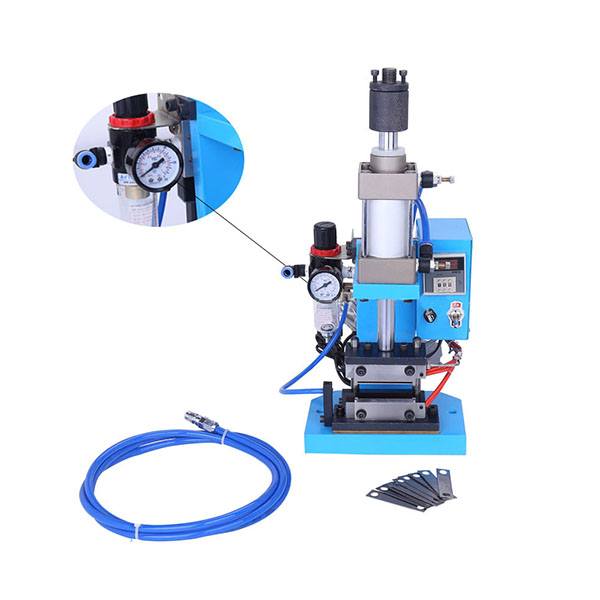

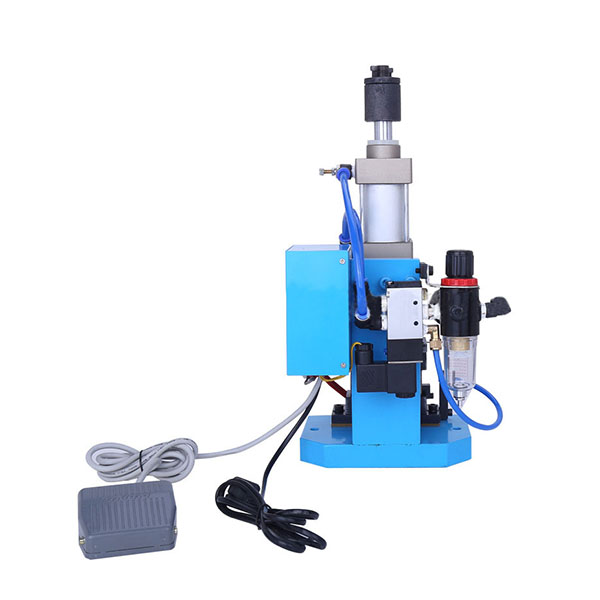

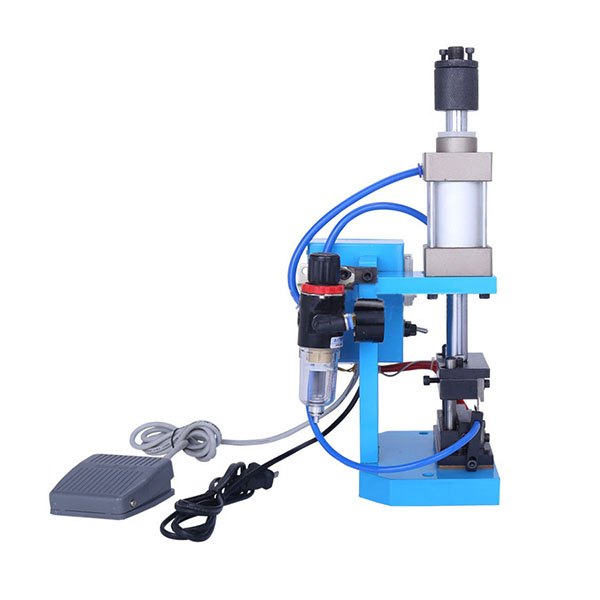

AM-150 Wire Stripper Stripping Machine Heating Wire Stripping Machine

Model: AM-150
Brand: Aituo
Delivery: 7-10 working days
Warranty: 1 year

INQUIRY NOW

Double-knife design, stripping cutting at one time.
Take out the cutting blade, then canuse it as a single knife.Simple operation and labor-saving.
Copper, platinum, silk stripping, nylon cable are in order.
Equipped with electric heating sheet, adjustable temperature. Automatic oil lubrication of the cylinder.
The parallelism of the upper and lower stripping knife is adjustable, the air pressure is adjustable, and the stripping speed is adjustable.
The special structure is fast, all kinds of wires can be half stripped, fully stripped, and adjusted easily and quickly.
The distance between the die set and the clamping line is short, making the computer core wire or special short wire easy to operate without scalding or pinching.
Only one set blade can be applied to any wire diameter of the peeling tool life more than 1 million times, saving tool costs.

Power: AC1 10V/220V~ 50HZ/60 HZ

Air pressure: 4-7KG

Size: 240X200X480MM

Weight: 13KG

Within 5mm of Single-strand wire, USB cable, headphone cable, isolation cable, computer cable, flat cable, combine cable, various single-core wires, computer multi-core cable and various medical wire rubber thin wires

Video

Accessories

AM-150 Wire Stripper Stripping Machine Heating Wire Stripping Machine
