AM205-B Automatic wire crimping and insert insulated sleev machineShenzhen Aituo Automation Device Co.,Ltd

The machine is an automatic wire crimping and insert insulated sleeve machine. The insulated sleeve is automatically fed by a vibration plate. The insulated sleeve can be inserted before the terminal is crimped. The insulated sleeve can be automatically moved to the terminal after crimping.
Each function can be opened or closed freely in the program. For example, one side crimping and inserting, another side crimping only.

Max. processing capacity：2600pcs/h

Applied wire size： AWG24-AWG12

Cutting length：80-3000mm (Conveying belt is needed when over 800mm)

Cutting accuracy：(0.5+0.001 XL)mm (L=Cutting length)

Stripping length：R<10mm L<14mm (customized when over standard parameter)

Crimping capacity： 2Ton (Mute crimping machine)

Power rating：2.75kw

Power Supply：AC 220V/50HZ

Air pressure：0.5-0.55Mpa

Weight：Machine: 420Kg Vibrating plate: 60Kg

Dimension (L*W*H)：Machine: 960x890x2000mm Vibrating plate: 40x40x 1160mm

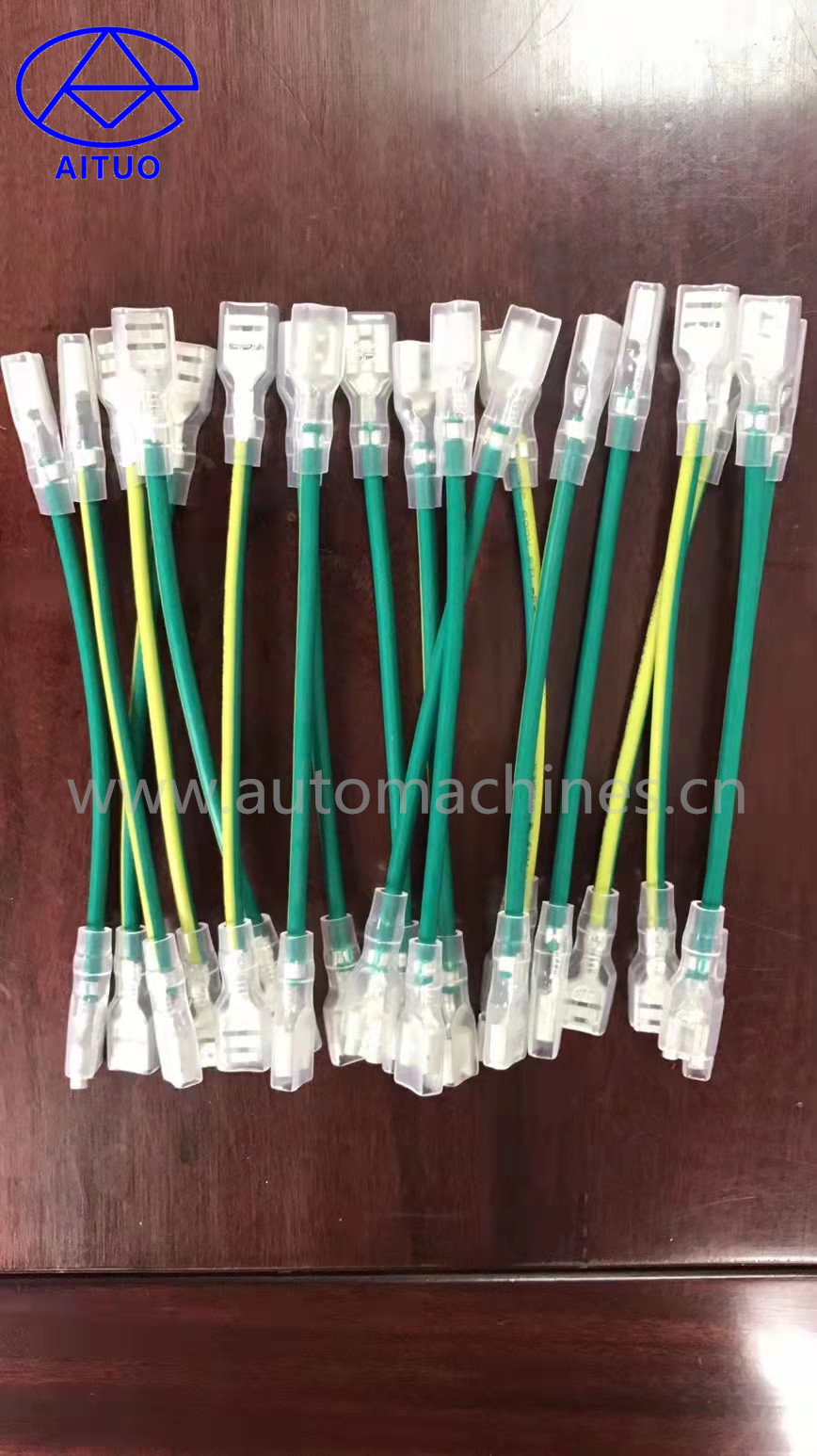

Application
