AM-3300A Soldering station

  • Model:AM-3300A
  • Brand: Aituo
  • Delivery:
  • Warranty:

INQUIRY NOW

×Enter your message





    1.High frequency heating principle,quickly and ample heating.

    2.Sensor front, temperature-sensing sensitive, instantaneous heat compensation

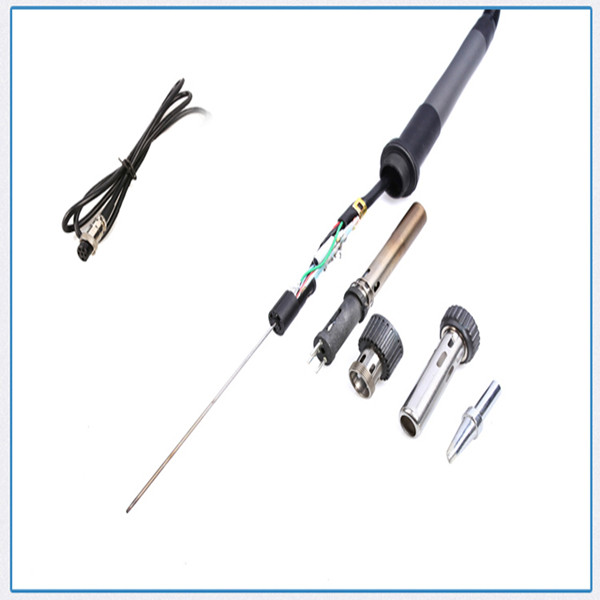

    3.Heating core pluggable design, simple and convenient replacement

    4.Metal shell, High level anti-static, equipped with cooling fans,the machine hosts temperature is low, which can effectively reduce the loss of life of electronic components.

    5.20 minutes without using soldering station, the machine hosts enter into hibernation, which can improve the life of the solder tip.

    Voltage: AC220V 50HZ/AC110V 60HZ

    Available temperature range: 50~600℃

    Standby power: ≤10W

    Max instantaneous power: 150W

    Temperature stability(standby): ±2℃

    The resistance to ground of solder tip :<2Ω

    The potential to ground of solder tip:<2mV

    Dimension: 215*126*106mm

    Temperature correction mode: Digital correction

    Password lockout function: YES

    Automatically dormant function: YES

    Application

    Video

    Accessories
