AM202 automatic wire cut strip crimp machine can deal with the both end of the wire. It adopts the touch screen control interface, its operation system is in Chinese and English. It works stably, it can send wire ,cut wire,strip wire and crimp the terminals very precise. Machine is controlled by servo motor, it is ultra-mute.
|
Model |
AM202 |
|
Size |
1000* 800* 1450mm |
|
Weight |
300kg |
|
Display |
English LCD Touch screen |
|
Voltage |
AC220/50Hz,AC110/60Hz Single phase |
|
Productivity |
Both ends crimping:4800pc./h |
|
Cutting Length |
40 mm—9999 mm |
|
Cutting Tolerance |
0.5mm+ (L×0.002) |
|
Twisting Length |
2mm-20mm |
|
Stripping Length |
(Front-end)：1.00～15.00/25.00mm (back-end):1.00～8.00mm |
|
Wire Range |
AWG32#-AWG14#(0.05mm2-2.0mm2) |
|
Air pressure |
0.5 MPA |
|
Crimping force |
1.0T/1.5T/2.0T |
|
Available applicator |
Side Applicator、End Applicator |

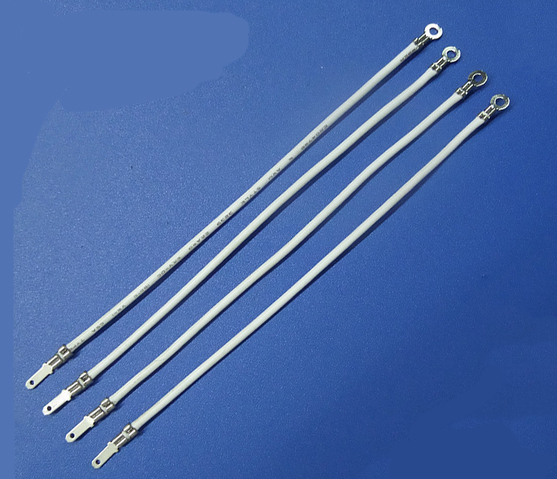

Application
Accessories
