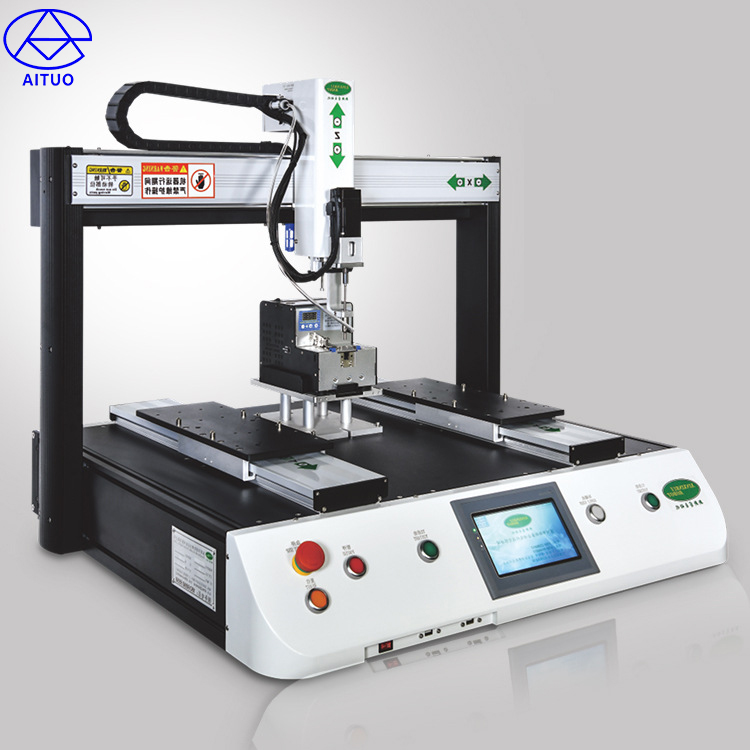

Automatic locking screw machine equipment four-axis double-station automatic screwdriver servo

  • Model: LB531
  • Brand: Aituo
  • Delivery: 10 days
  • Warranty: 1 year

INQUIRY NOW

×Enter your message





    Description

    1. Simple replacement of mold and accessories can be used for other products.
    2. the use of double guide rail structure, wear-resistant, long life.
    3. the standard servo batch, longer life, torque adjustment of each speed is more convenient and flexible.
    4. double station alternating operation, production lock efficiency of 5-6 employees.
    5. with intelligent detection function, can detect leakage lock, symbol lock, slip teeth and so on.
    6. strong versatility, flexible operation, applicable to a variety of products screw lock payment.
    7. the equipment is small, can be easily placed into the production line, and standard with the function of putting before and taking after.
    8. screw feeding method can support vacuum suction type, can also support blowing type.
    9. support deep hole, oblique hole, arc, high and low different product lock screws.
    10. drag teaching, transfer machine change line management is convenient and fast.

    Specification

    Model number: LB531 double platform locking screw machine

    Control system:Motion control card or MCU Electric

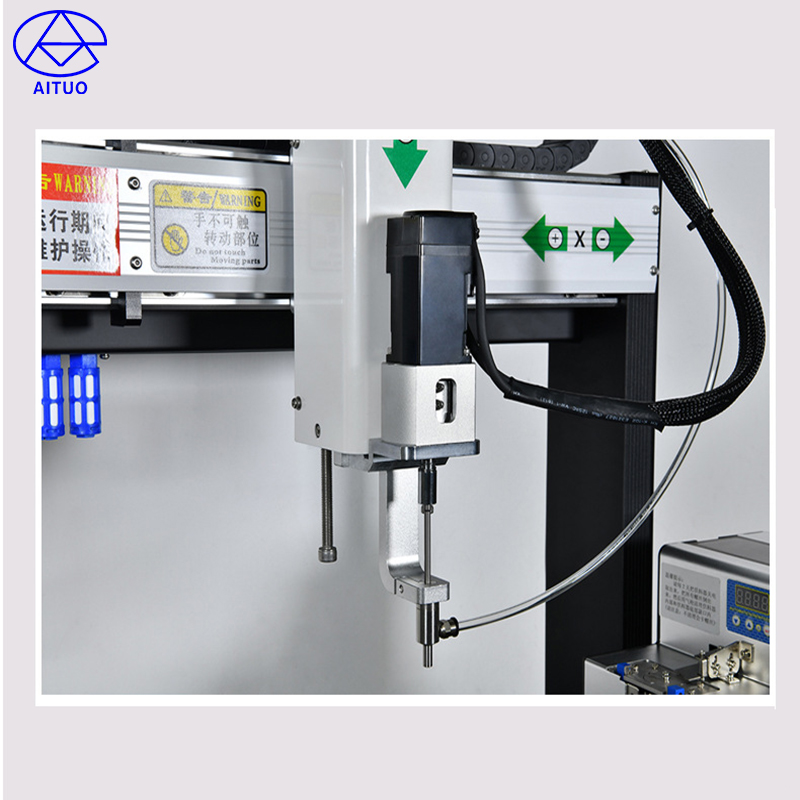

     screw driver:Servo

    Slide way: Taiwan on silver rail

    Screw conveyer: Suction type or blow type Switching

    Travel range (X/Z/Y):500 * 300 * 300 * 100MM

    Power: 600 w

    Maximum lock size: 160 * 260MM

    Conduction mode : Z/X/Y belt or screw

    Positioning accuracy: ±0.02MM

    Driver: Closed-loop stepper or servo

    Latching time: About 1-1.5 seconds

    Alarm function: Floating locks, slipping teeth, missing locks

    Machine weight: 80KGS

    Applicable screw: 0.8 ~ M8

    Degree storage quantity: 1000 groups

    Supply voltage: Single-phase 220V

    Air source: MPA0.4-0.6

    External communication interface: USB
