Specification

Wire Size：AWG32-AWG18

Cutting length：39-9999mm

Cutting accuracy：1mm+L*0.2%

Stripping length：1-10mm

Terminal pressure：2T

Processing capacity：4500pcs/hour (300mm)

Compressed air：0.5-0.6MPa(5-6KGF/CM2)

Voltage：AC220V 50Hz

Weight：308Kg

Dimension：670x850x1500mm

Detection device：wires existence, terminal existence, terminal pressure, Bad crimping

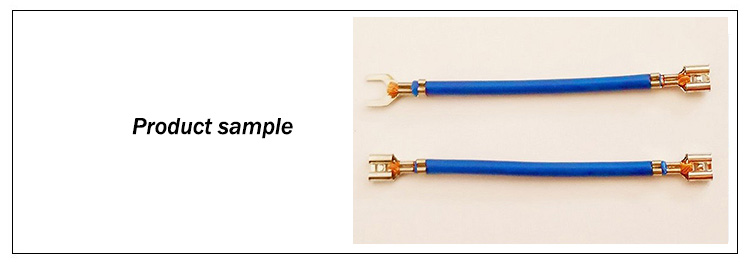

Application:

Function:  Wire terminal insertion, stripping, twisting, crimping
