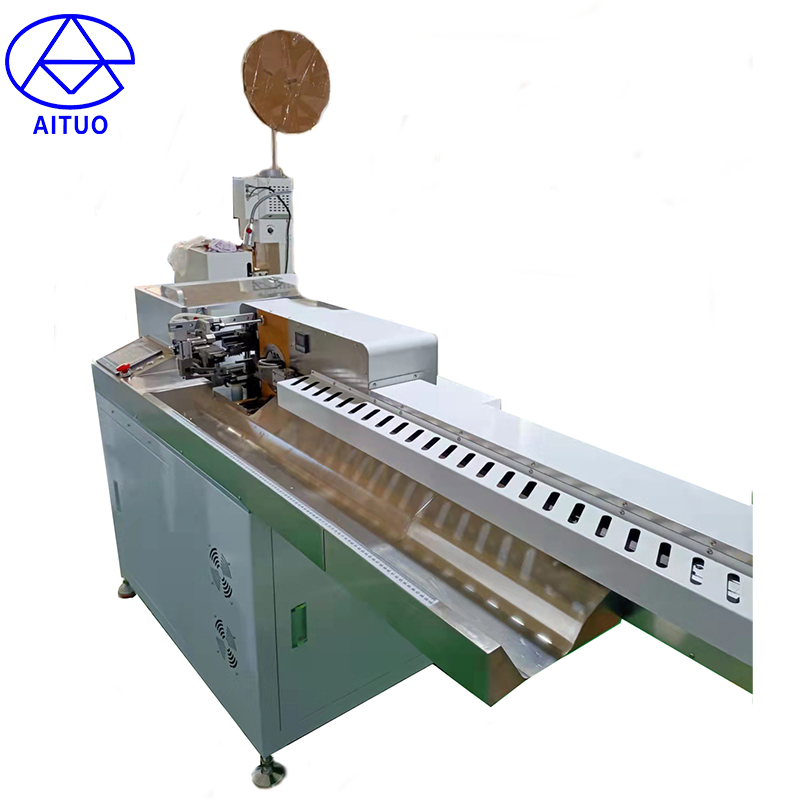

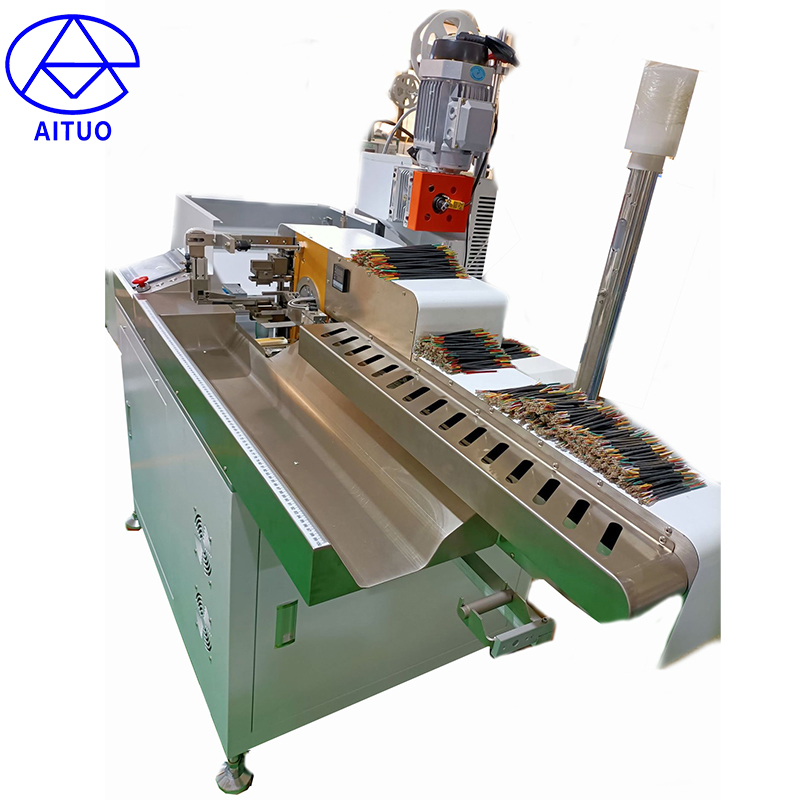

Fully Automatic Cable Wire Cutting Stripping Twisting Crimping Soldering Wire Tinning Machine

Multi-core round sheathed wire single end tinning machine

Function: Automatic cutting, peeling, stripping, crimping and tinning of multi-core wires

Processing range: Number of inner cores: 2-8 cores, outer diameter 2-7mm, inner cores 16-28#

Cutting length: 60-1150mm (can be extended by request)

Cutting accuracy: adjustment range 0.5mm + cutting length x 0.2% or less

Power source: AC220V 50/60Hz 20A

Stripping length: outer skin 15-38mm

Inner skin 0-15mm

Pressing capacity: standard 2TON (casting super silent clutch 2.0T terminal machine)

Weight 430KG

Size: 1680*680*1680MM

Description

The machine is designed for wire cutting stripping crimping and tinning. It is mainly used in wiring harness.

can process 5 wires at same time, it be handled very easy. You can learn to use it very quickly.

The machine is using good quality materials. Imported original parts, completely cut off the wires, stripping, terminal
pressing, etc. Accurate, easy to operate, stable performance
Cutter depth is adjusted by computer
The whole stripping length is directly set by the menu of touch panel.
Fast technical performance adjustment, short adjustment time, easy operation
Auto crimping machine suitable for horizontal, straight OTP molds. European Style Applicator is optional
