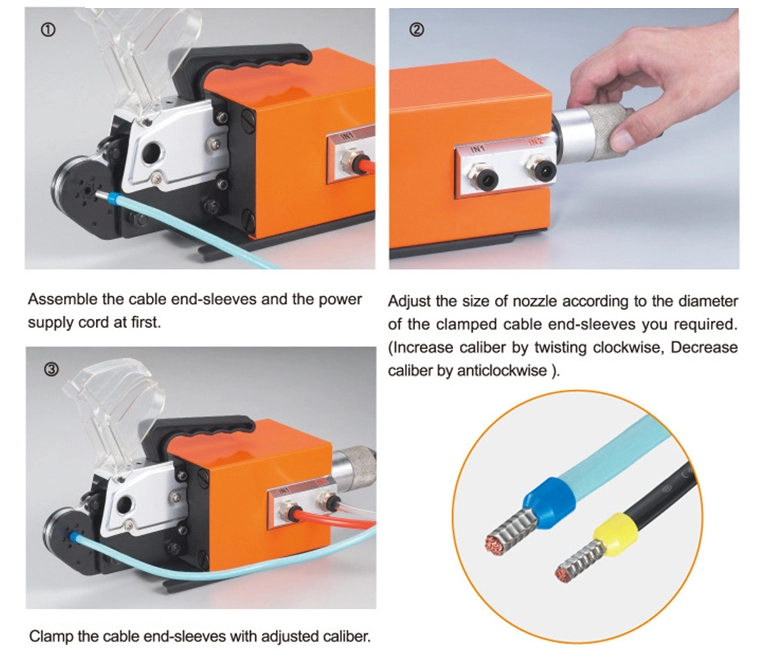

The machine is driven by dual-action normal cylinder, which has advantages of high efficiency and quality in crimping force and speed. The machine is fit for crimping many kinds of terminals. The die sets are interchangeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.
Crimping range 0.08-10mm²
Air pressure range 0.4-1.0MPa
Output 13.5KN
Overall dimension 260×120×140mm
Weight 4Kg
Application:
[video width="320" height="240" mp4="https://www.automachines.cn/wp-content/uploads/2018/05/AM-10.mp4"][/video]
Accessories
