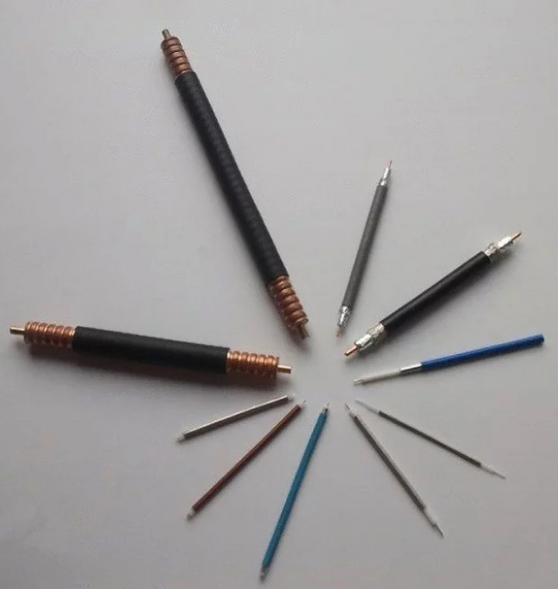

It is suitable for communication industry and automobile industry, such as coaxial cable, charging pile cable, BV cable,etc, stripping tidy and precise, no hurt conductors
Men-machine interface, easy to operate and debug, maximum peeling 9 layers, can store max 99 program.
The design of rotary cutter head and four rotary knife, and exquisite structure improve stripping stability and blade tools working life
It adopts servo motor, high precision ball screw drive and multi-point motion control system, stability and high efficiency.
Blades adopt imported tungsten steel, and can be coated with titanium alloy, sharp and durable.
It can meet many special requirements, such as multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
Continuous innovating based on original model, function and structure more optimized, better working performance.
Specifications;
Model: AM6093
Suitable cable: Coaxial cable
Interface: LCD 95*50MM
Display: Touch screen(Chinese and English language)
Voltage: AC220V/110V 50/60HZ
Power: 630W
Dimension: 920*220*400mm
Wight: 45KG
Stripping length: ø0.1mm-ø150mm
Stripping length setting unit: 0.01mm
Cutting deepth setting unit: 0.01mm
Cutting diameter range: 3.0-25mm
Drive mode:servo motor/NSK ball screw drive
Stripping way: rotary blade
Maximum peeling layers: 9 layers
Blade: Imported tungsten steel (Kenner, Fuji)
Work environment:-5---45 degrees, dry and vibration-free work surface
Material for protecting wire: ASSAB high speed steel
Shenzhen Aituo Automation Device Co.,Ltd
