AM6905 Full automatic coaxial wire stripping machine

  • Model:AM6905
  • Brand: Aituo
  • Delivery:10~15 working days
  • Warranty:1 year

INQUIRY NOW

×Enter your message





    Description

    1. Apply to process the half-soft and soft coaxial cable used for base station , and special requirement for single core wire.
    2. Advanced Rotary blade head with movable blade holder (cutting knife, stripping knife), making the complex processing for all kinds of cable in a single shape, without replacing extra blade, better quality and highier efficiency!
    3. Special central positioning device and wire feeding device, make processing precision higher and meet high requirements of the communication industry!
    4. Up to 100 groups of storage capacity make all kinds of processing data completely preserved, you can transfer at any time!

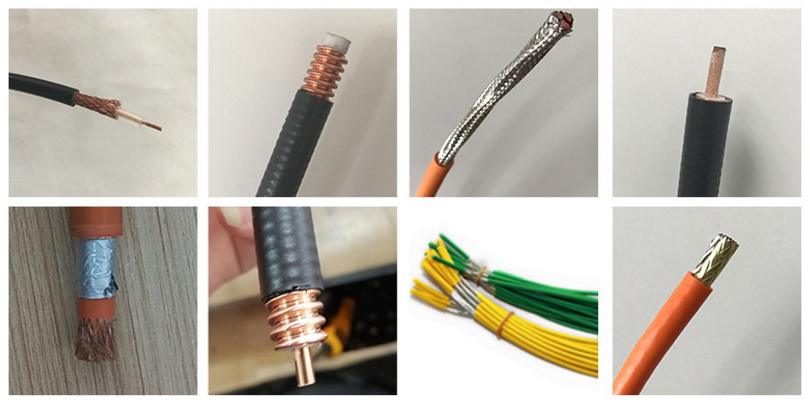

    5. Silicon rubber high temperature cable , high elastic cable, precision medical cable and high-end car wires all can be processed perfectly on the machine without hurt to conductor!

    Specification

    • Model: AM6905
    • Display: Touch screen
    • Interface: Chinese LCD 153*85MM
    • Suitable cable: Coaxial cable
    • Stripping length: right 100mm, left max 40mm
    • Stripping length setting unit: 0.01mm
    • Cutting diameter range: 1.0-5.0mm
    • Cutting deepth setting unit: 0.01mm
    • Stripping precision: ±0.2mm
    • Wight: 120KG
    • Power: 800W
    • Voltage: AC220V/110V 50/60HZ
    • Dimension: 600*690*400mm
    • Drive mode: motor/ ball screw drive
    • Stripping way: rotary blade + cutting stripping blade
    • Maximum peeling layers: 6 layers
    • Blade: Imported tungsten steel + imported high speed steel
    • Work environment:-5---45 degrees, dry and vibration-free work surface
    • Memory function: can store max 100 program
    • Productivity: 350-650pcs/h
